How do I add a trend graph within an existing page?

Only available for SMARTLINK: ENERGY


Within a TREND GRAPH PAGE, you can add multiple points in the same graph. We have a limitation of 2 dimensions and 4 different points. The Trend page is explained in detail here. If you wish to analyze more dimensions and/or measurement points, you can add a new trend graph below the current one. Meaning, you can analyze as many points as you want on the same page. Continue reading to find out how to do this:

Step 1

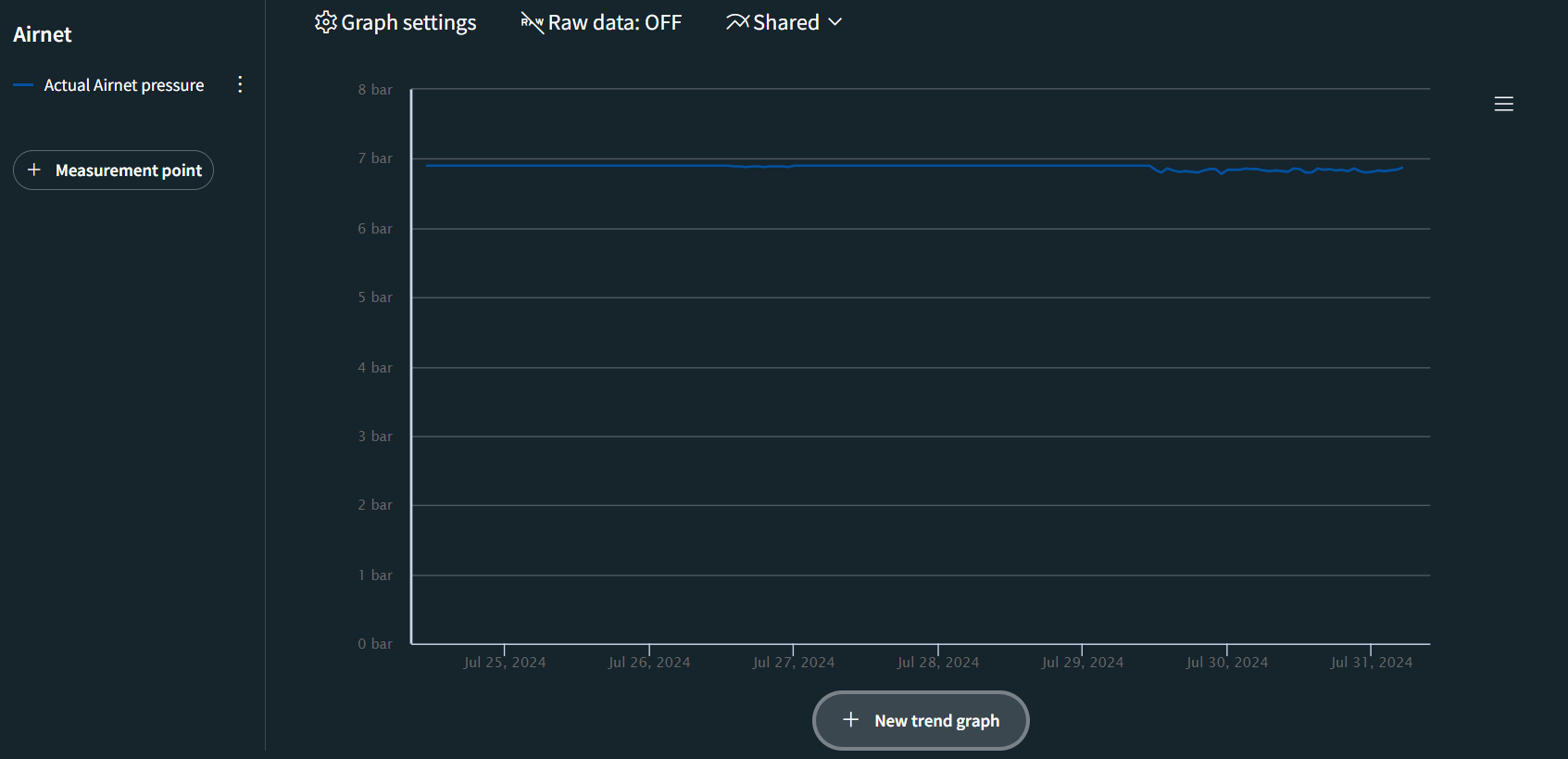

Select ADD A NEW TREND BELOW at the bottom of the trend graph page.


Step 2

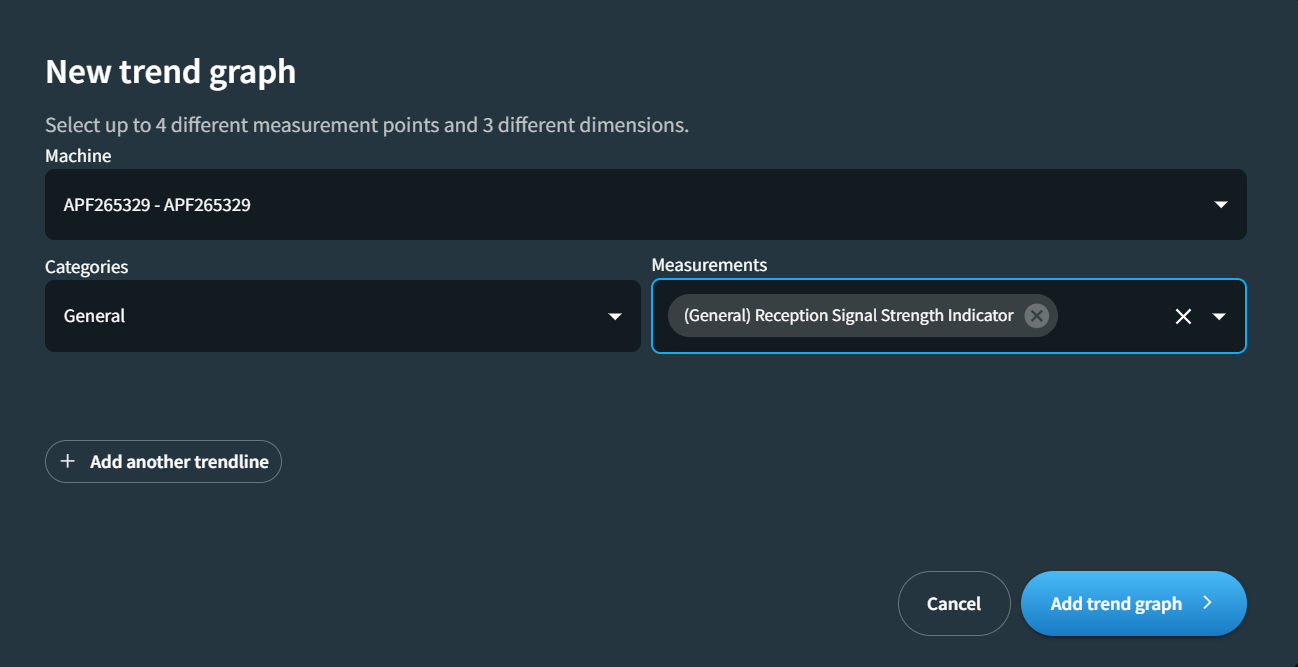

Select which machine and trend line (measurement point) you would like to plot and click on the ADD TREND GRAPH button. You can add up to 4 different trend lines within the same graph.
